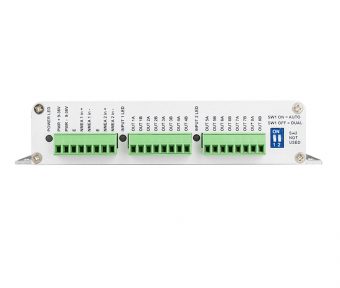

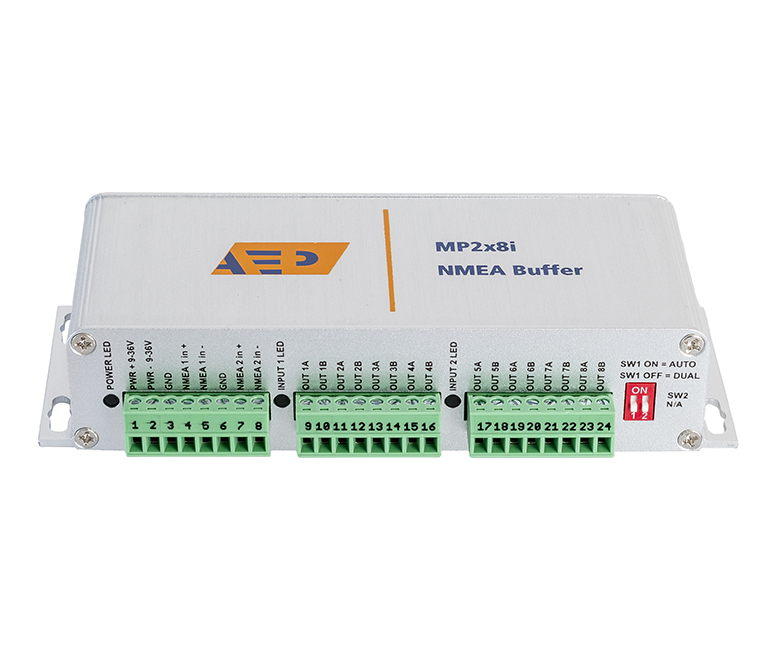

MP2x8i NMEA Buffer

Type approved NMEA buffer.

By combining the wishes of both technicians and clients we developed a user-friendly and reliable NMEA Buffer.
The MP2x8i NMEA Buffer has been designed to distribute NMEA-0183 or other RS422 signals from one transmitter up to 8 listeners. In dual buffer mode it can even operate as two independent buffers with 1 input and 4 outputs.

Approvals

  • Type approved by RINA
  • IEC60945 certified

Technical specifications

  • Number of inputs: 2
  • Number of outputs: 8
  • Input/output speed up to 230400 bps
  • Isolated 24 VDC (9-36 VDC) power supply
  • Reversed power supply polarity protection
  • Individually OPTO isolated input and output
  • Robust aluminum housing
  • Pluggable PCB terminal block for easy access and installation
  • Input signal: 2x RS232 or 2x RS422
  • Output signal: 8x RS422
  • Connection: cable diameter up to 1,5 mm (2,5 mm without ferrule)

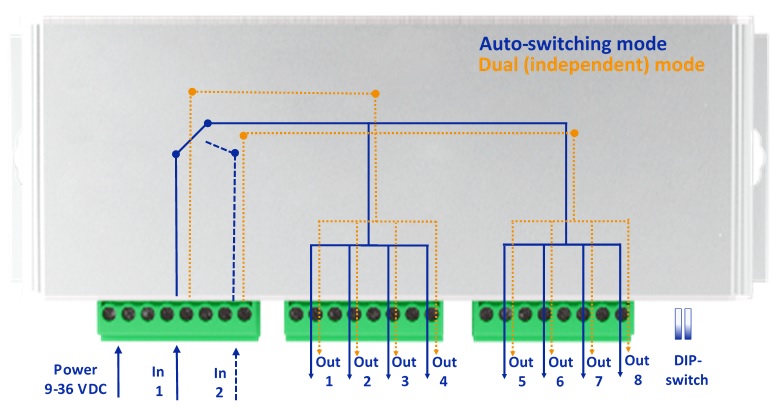

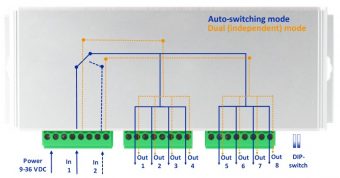

Operating modes

  • Auto-switch mode: If input signal #1 is lost for 30 seconds the buffer will automatically switch to input signal #2.
  • Dual mode: Operate as two independent buffers with 1 input and 4 outputs.

Accessories

Downloads

Others

  • GTIN code: 8719326623207

More information

Fore more information, please visit our FAQ or contact us directly.
